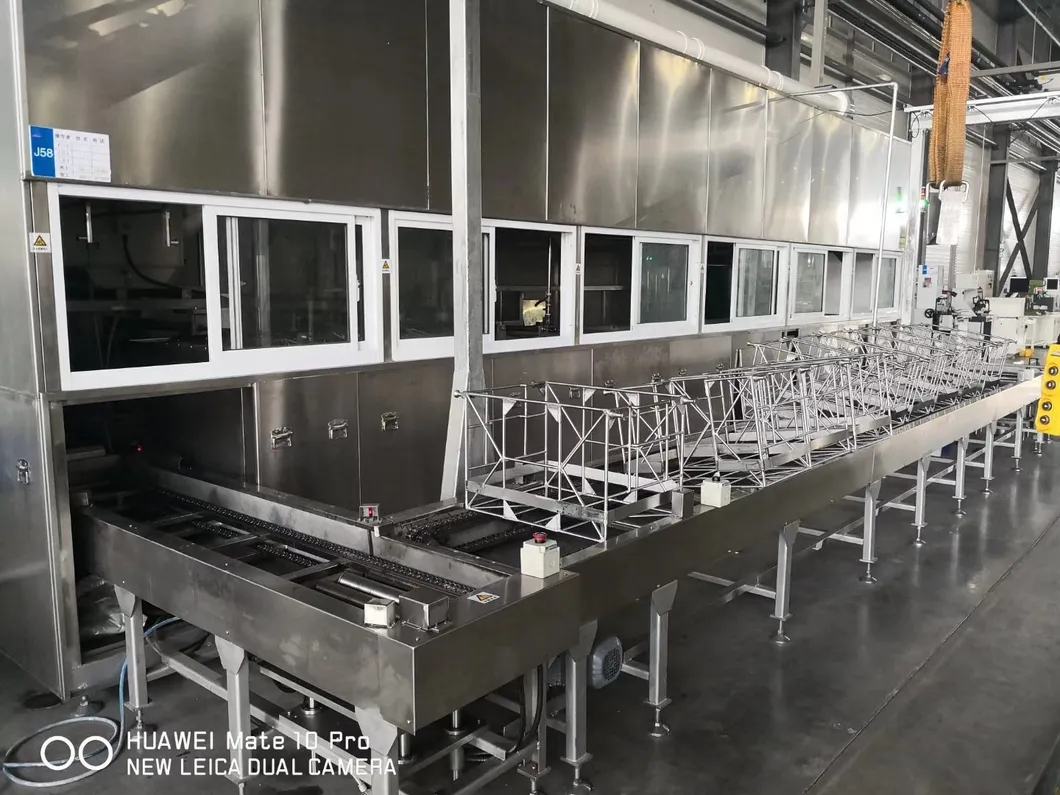

Fully Automatic Gantry Ultrasonic Cleaner Machine PLC Control for Industrial Components

Product Description

The Fully Automatic Gantry Ultrasonic Cleaning Machine is designed for continuous and multi-stage cleaning of industrial components. The system uses ultrasonic cavitation together with automated gantry transfer to provide consistent cleaning performance, precise workpiece positioning, and efficient process control.

The cleaning line can be configured with multiple tanks and transporters according to the required cleaning process, production capacity, workpiece size, and process sequence. Except for manual loading and unloading, the cleaning operations are automatically completed by the gantry transfer system under PLC control.

Ultrasonic Cleaning Principle

The ultrasonic generator converts electrical energy into a high-frequency electrical signal, which is converted into mechanical vibration by the ultrasonic transducer and transmitted into the cleaning solution.

When ultrasonic waves propagate through the cleaning liquid, alternating pressure creates microscopic cavitation bubbles. These bubbles rapidly form, grow, and collapse under the ultrasonic field. Their collapse generates localized micro-jets and pressure waves that help loosen contaminants from the workpiece surface.

The cavitation effect can effectively remove oil, grease, dust, particles, and other contaminants, including residues located in small gaps, cavities, and other difficult-to-reach areas. For oily workpieces, the ultrasonic process can also promote the separation and dispersion of oil and solid particles in the cleaning solution.

This makes ultrasonic cleaning suitable for precision and industrial components that require thorough and consistent surface cleaning.

Automatic Gantry Transfer System

1. Multi-Station Process Configuration
   Multiple gantry transporters can be configured according to the required process flow and production capacity. Each transporter performs vertical lifting, horizontal movement, and high-speed travel, with all movements controlled by the PLC system.

2. Fully Automatic Operation
   The cleaning process is automatically completed by the gantry transfer system, while operators only need to perform the loading and unloading operations. This reduces manual intervention and helps maintain consistent process cycles.

3. Three-Speed Movement Control
   The gantry transporter uses three-stage speed control for vertical lifting and horizontal movement: low speed, high speed, and low speed. This controlled acceleration and deceleration helps minimize inertia and swinging during movement while improving positioning stability and accuracy.

4. PLC Program Control
   Operators can select a pre-programmed cleaning process through the control system. After the program is selected, the gantry transporter automatically executes the preset sequence, reducing the need for manual operation during the cleaning cycle.

5. Absolute Positioning and Tank Identification
   The transporter uses an absolute positioning system for accurate movement between process stations. Each tank is assigned a unique identification code to help prevent positioning errors and ensure that the workpiece follows the programmed process sequence.

6. Multiple Safety Protection Systems
   Safety guardrails are installed around the operating area to reduce the risk of contact between personnel and moving equipment. Protective devices help prevent the transporter from traveling beyond the designated track. Emergency braking and safety rope systems are also incorporated to provide additional protection during equipment operation.

Basic Operating Process

The operator first loads the workpieces into the designated basket and selects the required cleaning program from the PLC control system.

After the program starts, the gantry transporter automatically moves to the loading station and picks up the basket. According to the programmed sequence, the transporter lifts the basket, moves horizontally to the designated cleaning tank, and lowers the basket into the solution.

The workpiece then undergoes the programmed ultrasonic cleaning and other configured treatment stages. The transporter automatically repeats the same movement sequence for subsequent tanks according to the preset process parameters.

After all cleaning stages are completed, the transporter transfers the basket to the unloading station. Once the unloading position is confirmed by the sensor, the basket is lowered to the designated position for removal by the operator.

The entire cleaning cycle is controlled by the PLC according to the preset program, helping improve process consistency and operational efficiency.

Key Equipment Features

• Fully automatic gantry transfer system

• PLC-controlled multi-stage cleaning process

• Automatic vertical lifting and horizontal movement

• Three-speed movement control for smooth positioning

• Absolute positioning system

• Tank identification for process sequence control

• Multiple safety protection and emergency braking systems

• Reduced manual intervention

• Flexible multi-tank process configuration

• Compact structure and professional appearance

• Stable and reliable operating performance

Typical Applications

The fully automatic gantry ultrasonic cleaning machine is suitable for industrial components that require repeatable and multi-stage cleaning processes, including:

• Metal machined parts

• Precision metal components

• Stamping parts

• Automotive components

• Electronic components

• Hardware parts

• Industrial equipment components

• Other products requiring ultrasonic and multi-stage cleaning

Technical Specifications

Customer Case: Automatic Ultrasonic Cleaning for Metal Parts

Customer: Metal Parts Manufacturer
Application: Pre-Plating Cleaning

The customer required an automated cleaning system to remove oil and machining residues before electroplating.

Solution: Greatwell supplied a PLC-controlled ultrasonic cleaning system with automatic transfer and customized tank configuration.

Result: Stable automatic operation and consistent cleaning performance for the customer's metal parts pretreatment process.

Why Choose Greatwell

• PLC-Controlled Automation — Programmed cleaning and automatic transfer.
• Customized Engineering — Equipment configuration adapted to workpiece and process requirements.
• Surface Treatment Expertise — Experience in electroplating and related pretreatment equipment.
• Integrated Equipment Supply — Cleaning, plating and environmental protection equipment can be supplied as related systems.
• Technical Support — Online after-sales support and equipment customization.

Quality Control

Before delivery, the automatic ultrasonic cleaning system is inspected for:

• Tank fabrication and welding
• Ultrasonic generator operation
• Transducer installation
• PLC control functions
• Transporter positioning
• Safety protection
• Electrical connections
• Cleaning cycle operation
• Water leakage

Frequently Asked Questions

1. Can the ultrasonic cleaning machine be customized?
Yes. Tank size, ultrasonic power, heating, transfer system and PLC control can be customized according to the workpiece and production requirements.

2. Can it be integrated into an electroplating line?
Yes. The system can be configured as a pretreatment cleaning process before electroplating, anodizing or other surface finishing operations.

3. How does the automatic transfer system work?
The PLC controls the programmed vertical lifting, horizontal transfer and positioning of workpieces between process tanks.

4. What types of parts can be cleaned?
The system is suitable for many metal and industrial components, including parts with complex surfaces, holes and recessed areas. The cleaning configuration should be selected according to the workpiece and contamination type.

5. What power supply does the machine use?
The standard configuration is 380V. Other voltage requirements can be confirmed during equipment design.

6. What is the warranty period?
The standard warranty period is 12 months, with online technical support available for after-sales service.
