Customized Precise Plating Barrel for Small and Precision Components

Precise Plating Barrel

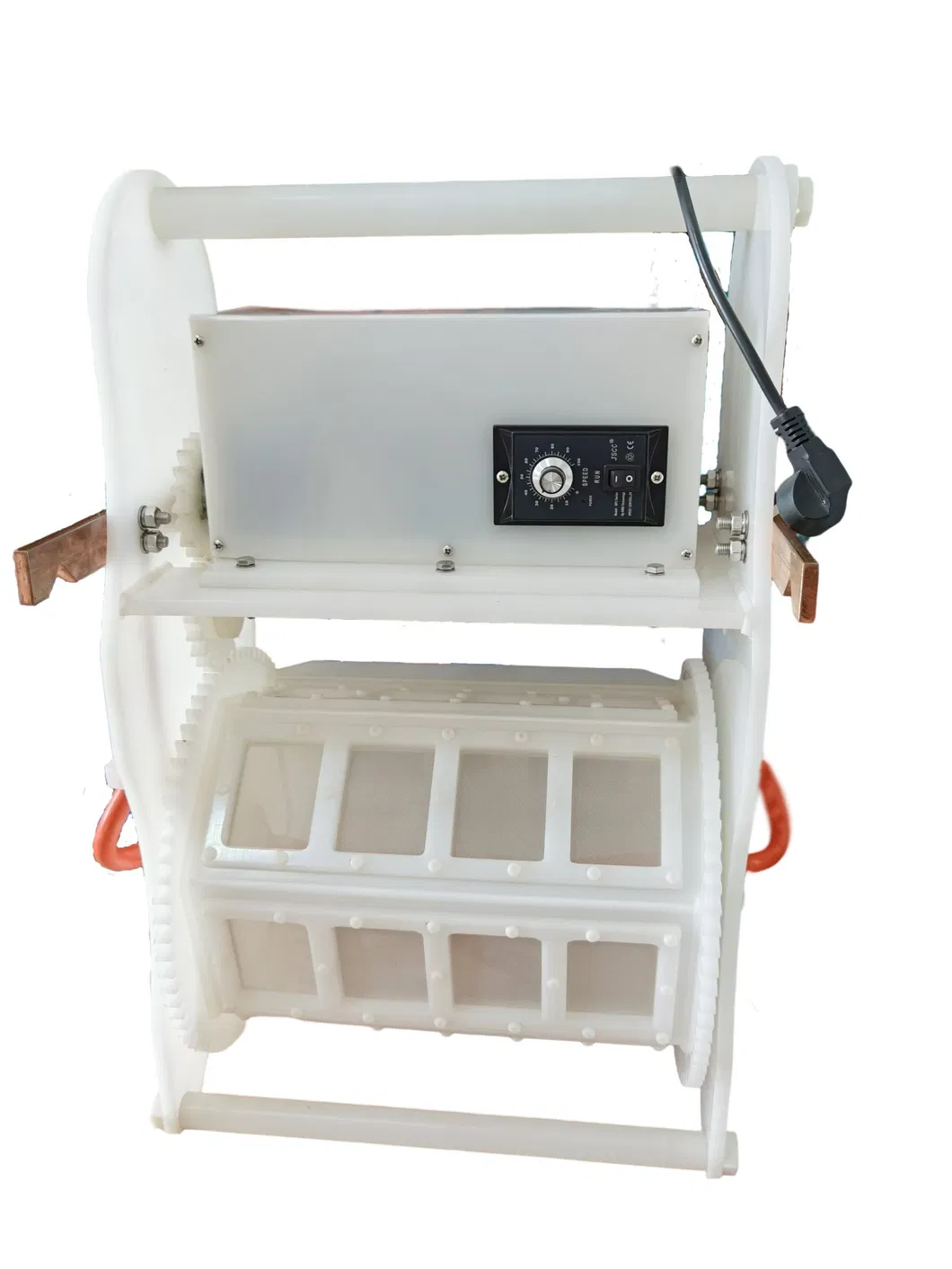

The precise plating barrel is specially designed for the electroplating of small, lightweight and precision components. It is made of high-quality acrylic material combined with precision mesh, providing a stable plating environment while helping prevent small parts from becoming trapped, clamped or overlapped during barrel rotation.

Compared with conventional plating barrels, the precision barrel is suitable for handling miniature components with small dimensions and complex shapes. Its optimized mesh structure improves the contact and movement of workpieces during the plating process, helping achieve more uniform exposure to the plating solution and consistent coating performance.

The barrel is particularly suitable for precision electronic and electrical components, including chip resistors, inductors, NdFeB magnets and other small metal components. It can be integrated into automatic or semi-automatic barrel plating systems according to production requirements.

The precision plating barrel can be used for a variety of metal plating processes, including copper plating, nickel plating, tin plating, silver plating and gold plating. Depending on the workpiece material, required coating thickness and final application, the plating process can be configured to provide corrosion protection, electrical conductivity, solderability, wear resistance or improved surface appearance.

Technical Specifications

Key Features

• Precision Acrylic & Mesh Construction: Designed for stable handling of small and delicate components.

• Anti-Clamping Design: Helps reduce material clamping and entanglement caused by miniature workpiece sizes.

• Suitable for Small Components: Ideal for precision electronic, electrical and magnetic components.

• Uniform Workpiece Movement: The precision mesh structure supports effective solution circulation and component turnover.

• Multiple Plating Options: Suitable for copper, nickel, tin, silver, gold and other electroplating processes.

• Flexible Application: Can be used with automatic, semi-automatic or customized barrel plating equipment.

• Precision Surface Treatment: Suitable for applications requiring stable coating thickness, electrical performance and surface protection.

Typical Applications

The precision plating barrel is widely used for the surface treatment of chip resistors, inductors, NdFeB magnets, miniature electronic components, electrical contacts, precision metal parts and other small components where conventional barrel plating equipment may cause clamping or material retention.

Engineering Considerations

The selection of a precision plating barrel should be based on the characteristics of the workpiece and the required plating process.

Before production, our engineering team evaluates factors such as:

Workpiece Size and Shape
The component dimensions and geometry determine the appropriate mesh structure and barrel configuration.

Material Characteristics
Different substrates, such as copper, steel, stainless steel, and NdFeB, may require different pretreatment and plating conditions.

Plating Requirements
The required coating material, thickness, surface appearance, and electrical performance affect the selection of the plating process and operating parameters.

Part Loading
The loading quantity must provide sufficient movement and solution circulation without excessive accumulation of small components.

Barrel Rotation
Rotation speed should be matched to the workpiece characteristics to maintain stable movement while minimizing part damage and entanglement.

Based on these factors, the barrel can be customized and integrated with the corresponding plating tanks, rectifiers, filtration, heating or cooling systems, and automatic control system.

Precision Plating Equipment Manufacturer

Greatwell specializes in the design and manufacture of electroplating equipment and surface treatment systems. Our engineering team works with different plating processes, including copper, nickel, chrome, zinc, anodizing, silver, gold, and other surface finishing applications.

For precision barrel plating, the barrel structure and operating parameters can be configured according to the component size, substrate material, plating chemistry, production capacity, and required coating performance.

The precision plating barrel can also be integrated into complete manual, semi-automatic, or automatic plating lines.

 FAQ

1. What is a precision plating barrel?

A precision plating barrel is a specialized barrel designed for electroplating small and precision components. Its fine mesh structure helps improve part handling and plating solution contact during barrel rotation.

2. What parts can be processed in a precision plating barrel?

It is suitable for small electronic components, chip resistors, inductors, connectors, NdFeB magnets, miniature hardware, and other small metal parts.

3. What plating processes can the precision barrel support?

Depending on the complete plating system and process requirements, it can be used for copper, nickel, tin, silver, gold, and other electroplating processes.

4. Can the precision plating barrel be customized?

Yes. Barrel dimensions, mesh structure, loading capacity, rotation speed, and other configurations can be customized according to the workpiece and production requirements.

5. How do you select the right precision plating barrel?

The selection mainly depends on workpiece size and shape, substrate material, plating process, required coating thickness, production capacity, and loading requirements.
