Anodizing Line Anodizing Machine Oxidation Machine Oxidation Equipment
This automatic anodizing line features manual loading and unloading with flight bars transferred by trolley. The system is designed for maximum efficiency and reliability in industrial surface treatment applications.
Operation Process
The system begins with manual loading of flight bars onto trolleys. After entering the product code and pressing the load ready button, the IPC retrieves pre-stored process data and directs the gantry crane to transport workpieces through the complete treatment sequence. All process parameters are monitored and recorded for quality control.

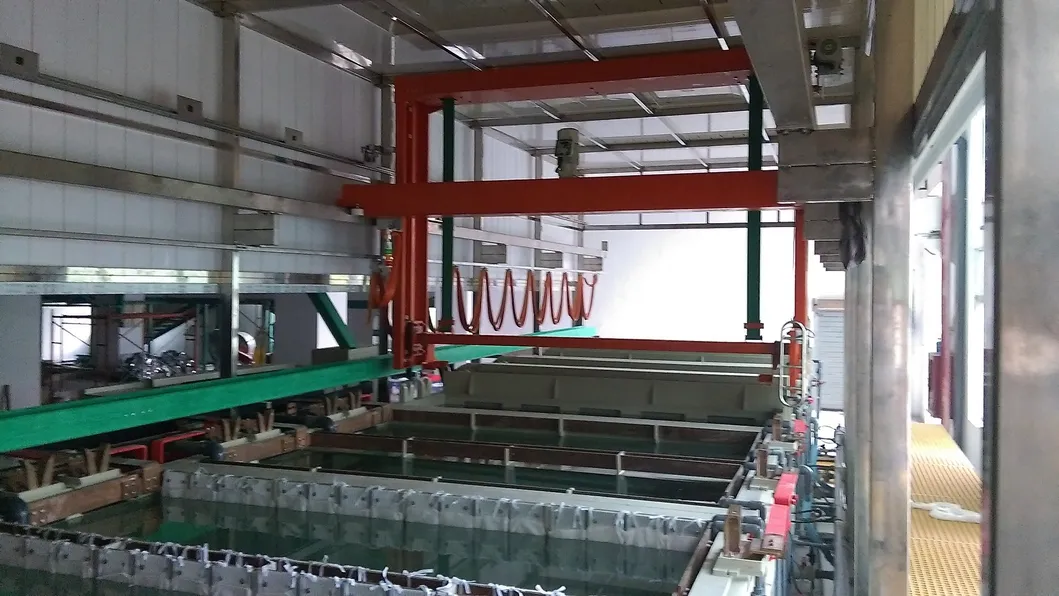

Project Case: Automatic Aluminum Anodizing Line
This automatic anodizing line was designed for continuous surface treatment of aluminum components. The system integrates pretreatment, anodizing, coloring, sealing, washing and drying processes into one automated production line.
| Item |
Details |
| Application |
Aluminum Surface Treatment |
| Line Type |
Automatic Gantry Anodizing Line |
| Workpiece |
Aluminum Components |
| Control |
PLC + HMI |
| Transfer |
Automatic Gantry |
| Process |
Pretreatment → Anodizing → Coloring → Sealing |
| Tank Material |
PP / PVC |
| Customer Location |
Singapore |
| Installation |
On-site Installation Available |
Manufacturer Credentials
Dongguan Greatwell Environmental Protect Technology Co., Ltd. specializes in the engineering and manufacturing of electroplating equipment and environmental protection systems.
Our project capabilities cover the complete equipment delivery process, including process evaluation, equipment design, mechanical fabrication, electrical integration, PLC programming, factory testing, installation, commissioning, and after-sales technical support.
- 8 Years of Industry Experience
- 1000m² Manufacturing Facility
- Customized Plating Line Design
- PLC/IPC-Based Automation Systems
- Factory Acceptance Testing
- Installation and Commissioning
- After-Sales Technical Service
- Global Project Experience
Frequently Asked Questions
What is an aluminum anodizing line?
An aluminum anodizing line is a complete surface treatment system used to form a protective oxide layer on aluminum and aluminum alloy products. It typically includes pretreatment, anodizing, rinsing, sealing and drying processes.
What products can be processed?
The line can be customized for aluminum profiles, panels, housings, brackets, machined parts and other aluminum components according to their size, weight and production requirements.
Is the anodizing line fully automatic?
Yes. An automatic gantry transfer system can move workpiece racks between process tanks according to the programmed process sequence, reducing manual handling and improving production consistency.
How is the anodizing process controlled?
The PLC and HMI system can monitor and control key parameters such as processing time, bath temperature, electrical current and transfer sequence. Process recipes can also be configured for different products.
Can the anodizing line be customized?
Yes. Tank size, process sequence, gantry system, rectifier capacity, automation level and line layout can be customized according to the customer's workpieces, production capacity and factory space.
Can the line control oxide film thickness?
Yes. Film thickness depends on factors including current density, anodizing time, bath temperature and aluminum alloy. The system can be configured to maintain the required process conditions.
What information is needed for a customized solution?
Please provide the workpiece material, dimensions, weight, photos or drawings, required film thickness, surface finish, production capacity and available factory space.
Do you provide installation and commissioning?
Yes. Installation, commissioning, operator training and technical support can be provided according to the project requirements.
Anodizing Process Flow
