Fully Automated Rack Plating Line Nickel Plating Machine With Flight Bar Transfer

Tank Material : 3mm 304 Stainless Steel, PP

Heating Type : Electronic, Steam, Hot Water

Price : Negotiated

Application : Metal Products Plating

Plating Type : Nickel

Control System : PLC, Computer Control, DMS

MOQ : 1

Tank Framework Material : Square Steel Tube

Certification : GS

Transporter Model : Automatic, Semi-automatic, Manual

Warranty : 12 Months

Contact Now

Nickel Plating Machine Nickel Plating Equipment

This automatic nickel plating equipment features manual loading and unloading with flight bar transfer via trolley system. The line is designed for enhanced work efficiency with configurable gantry transporters featuring vertical lifting and horizontal movement capabilities.

Key Features
  • Fully automated processing line with manual loading/unloading only
  • Simple operation - workers input product code and equipment handles all technological processes
  • Reliable operation with absolute position transporters and unique tank barcodes to prevent orbit deviation
  • Comprehensive safety protection systems including collision avoidance, fall prevention, and emergency braking
Operation Process

Operation begins by manually pushing the trolley with flight bar, jig, and product to the loading station. After entering the product code (via barcode, IC

card, or computer input) and pressing the "load ready" button, the IPC retrieves pre-stored plating data and transmits commands to the PLC. The traveling crane then moves to the loading section, lifts the flight bar, and sequentially processes products through each stage. Upon completion at the unload station, an audible reminder signals operators to prepare for unloading. The entire process data (temperature, time, current, etc.) is stored in the IPC for monitoring, archiving, and printing.

Technical Specifications
Item Description
Material of tank 3mm 304 stainless steel, PP
Material of framework Square steel tube
Control system PLC, computer control and Computer DMS
Heating type Electronic, steam, hot water
Model of transporter Automatic, semi-automatic, Manual
Surrounding equipment Rectifiers, Filters, Chiller, pipe, air blower, waste gas treatment system
Warranty 12 months
Advantages Flexible design, safe, stable and high strength, automatic weighting and loading
Applications Different kind of plating for metal products
Contactor (switch) and thermal relay Famous Brand
Product Images

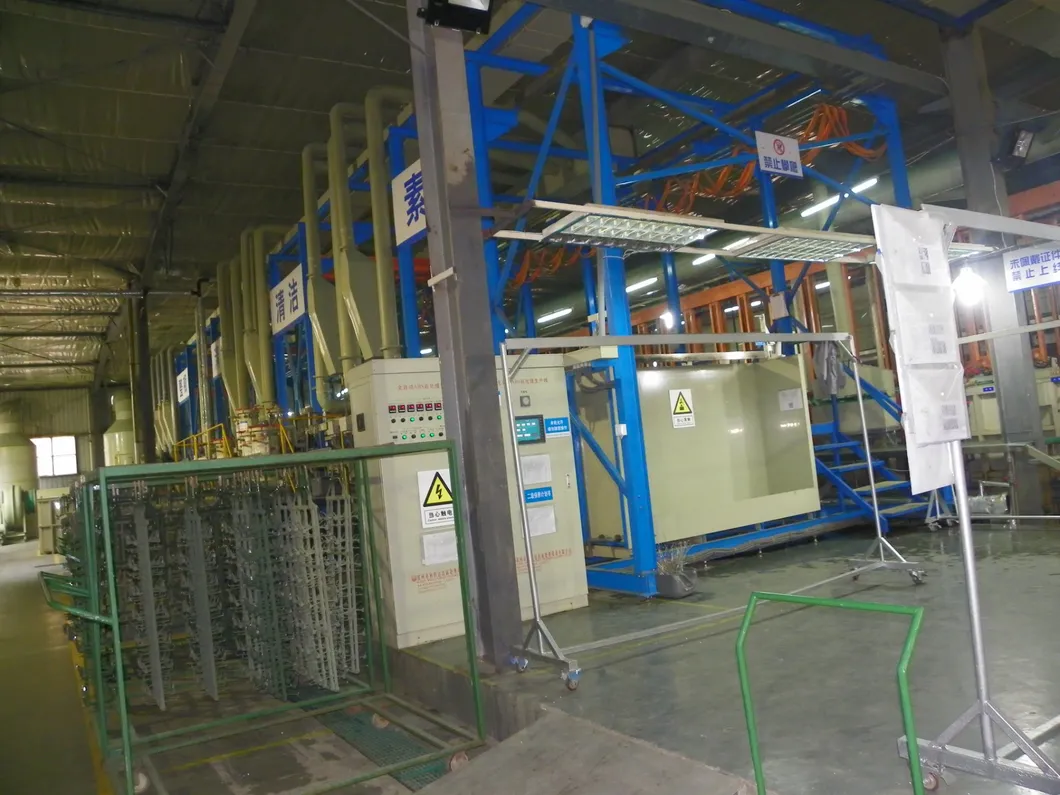

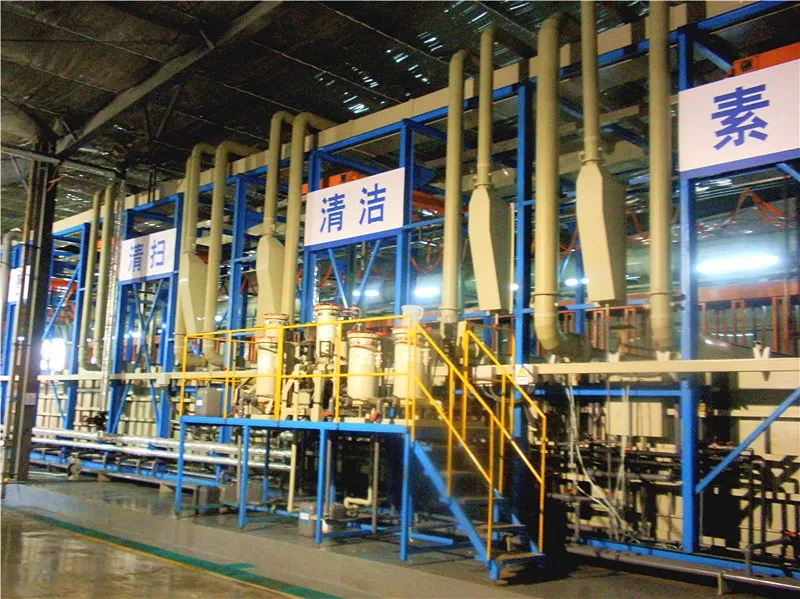

Fully Automated Rack Plating Line Nickel Plating Machine With Flight Bar Transfer Fully Automated Rack Plating Line Nickel Plating Machine With Flight Bar Transfer Fully Automated Rack Plating Line Nickel Plating Machine With Flight Bar Transfer Fully Automated Rack Plating Line Nickel Plating Machine With Flight Bar Transfer

Fully Automated Rack Plating Line Nickel Plating Machine With Flight Bar Transfer

FAQ:


What products can be processed by an automatic rack plating line?

The line can process conductive metal components that can be securely mounted on plating racks. The suitable workpiece size, weight and rack configuration depend on the product design and required plating process.

Can the rack plating line be customized?

Yes. Tank dimensions, process sequence, rectifier capacity, transfer system, filtration, heating, exhaust treatment and automation level can be customized according to the customer's production requirements.

What information is required for a nickel plating line quotation?

We recommend providing workpiece drawings or photos, material, dimensions, weight, required nickel coating thickness, production volume and target production capacity.

Can the line be fully automated?

Yes. The line can be equipped with automatic gantry transfer, PLC control, HMI operation, automatic process sequencing and other automation functions according to the project requirements.

Can you provide installation and commissioning?

Yes. Installation, commissioning, operator training and after-sales technical support can be provided according to the project scope and customer requirements.
